About this design

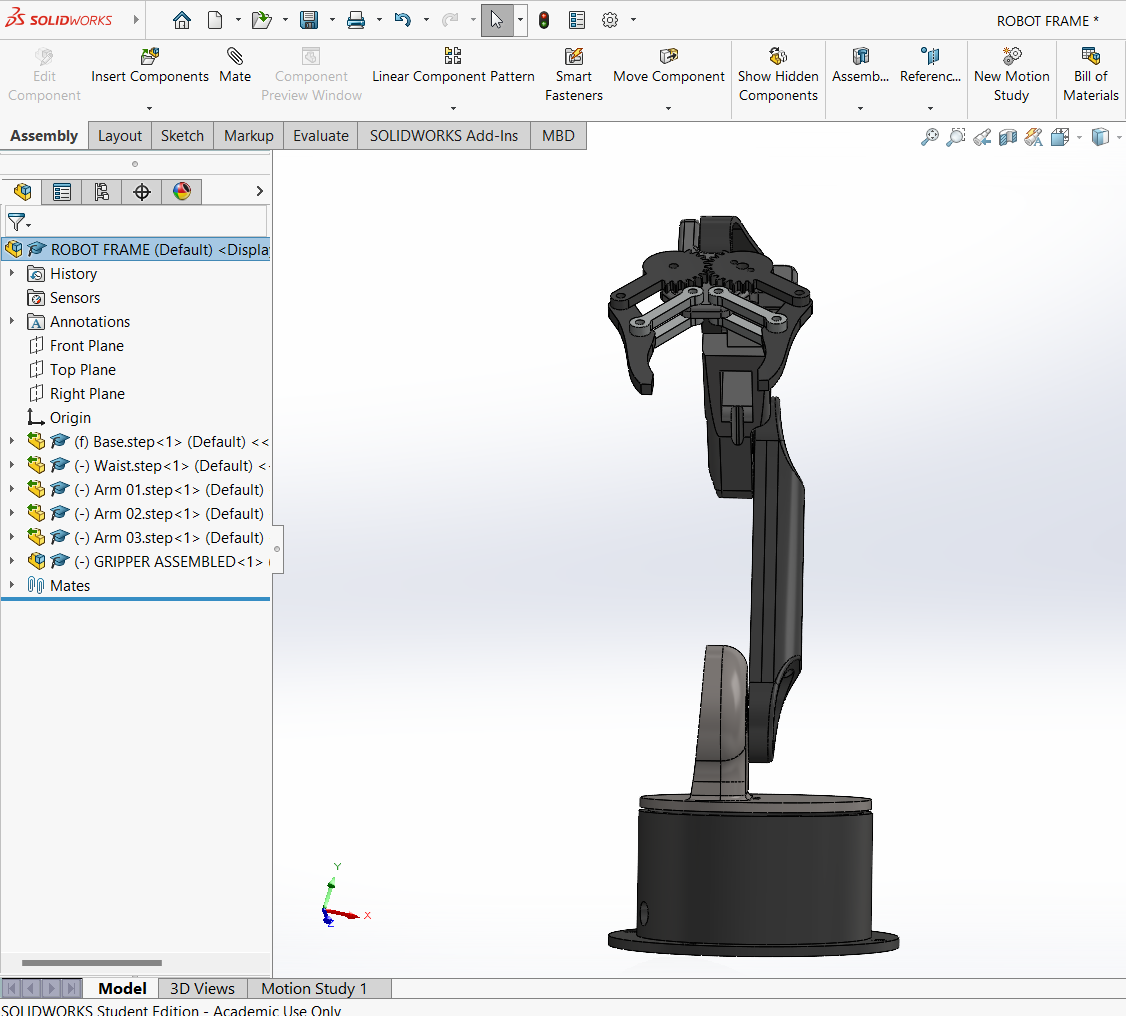

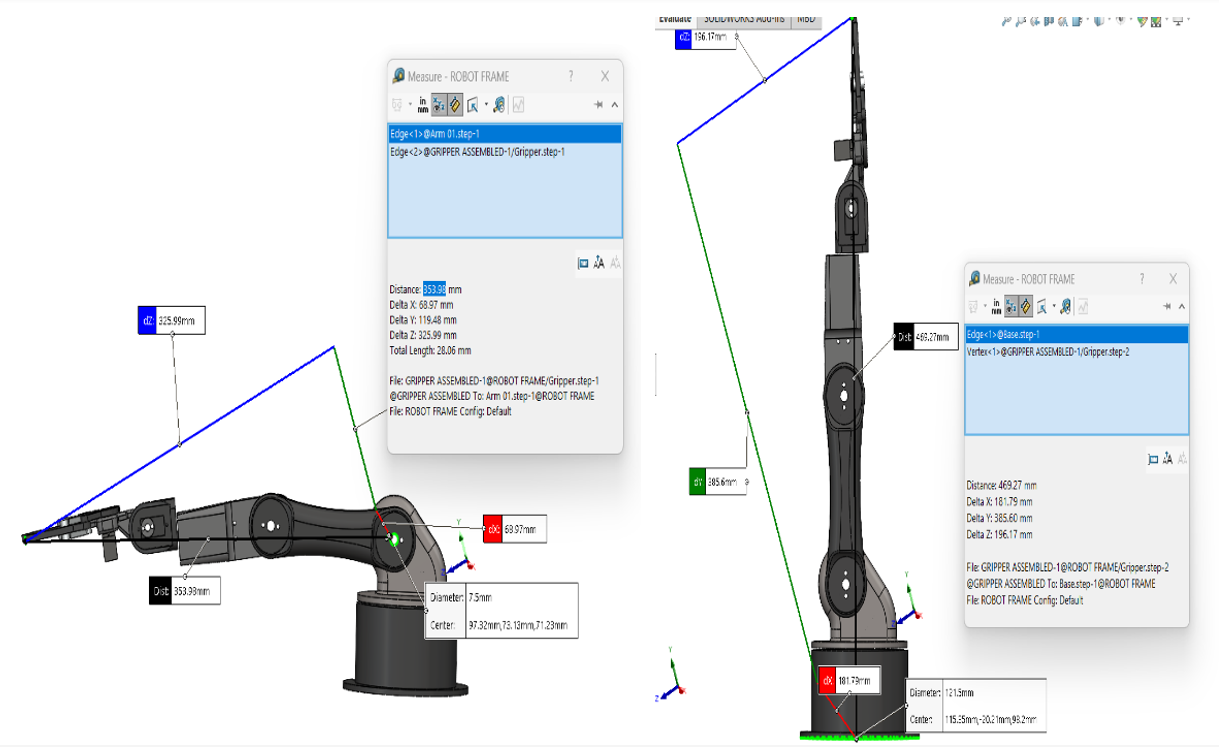

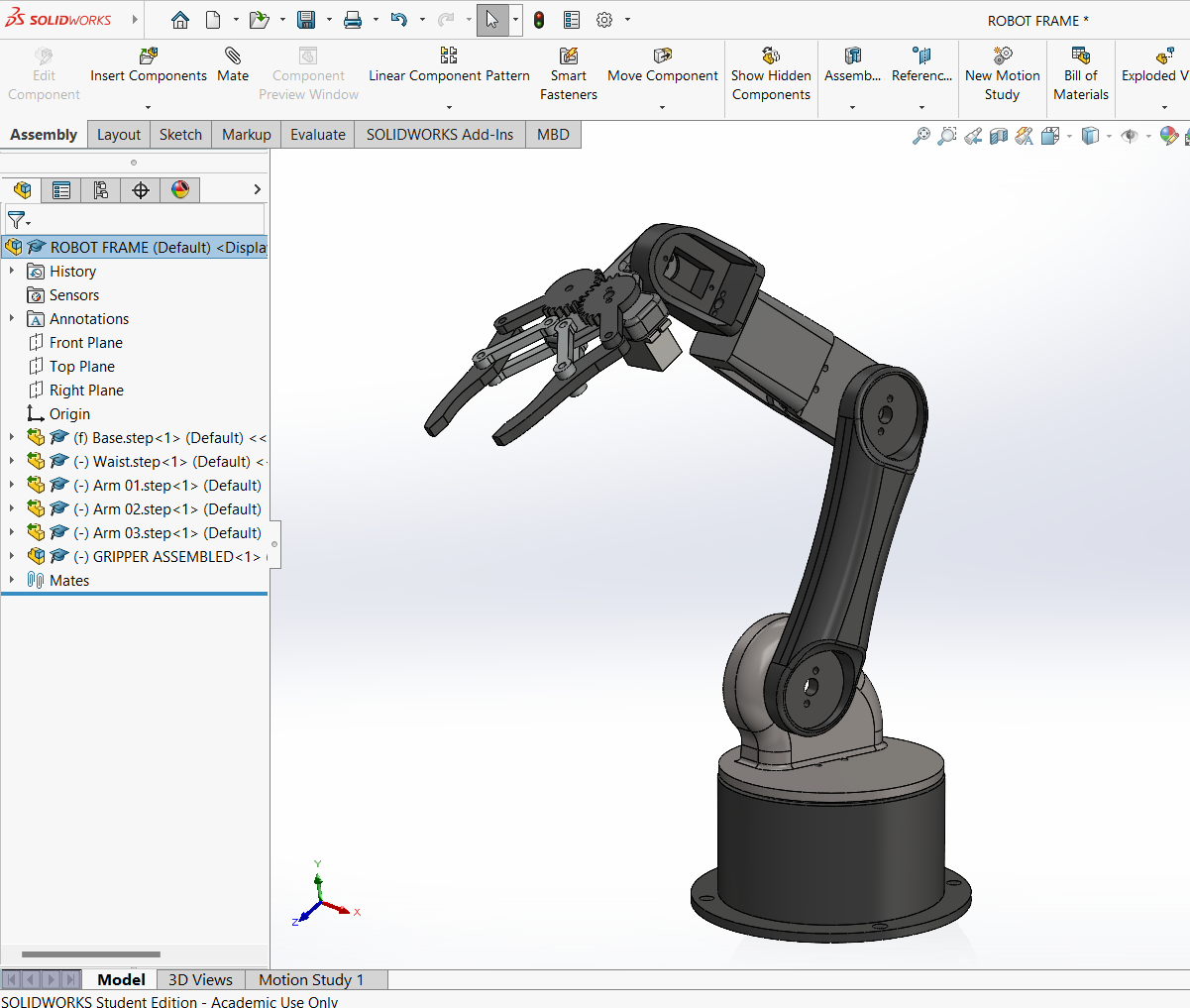

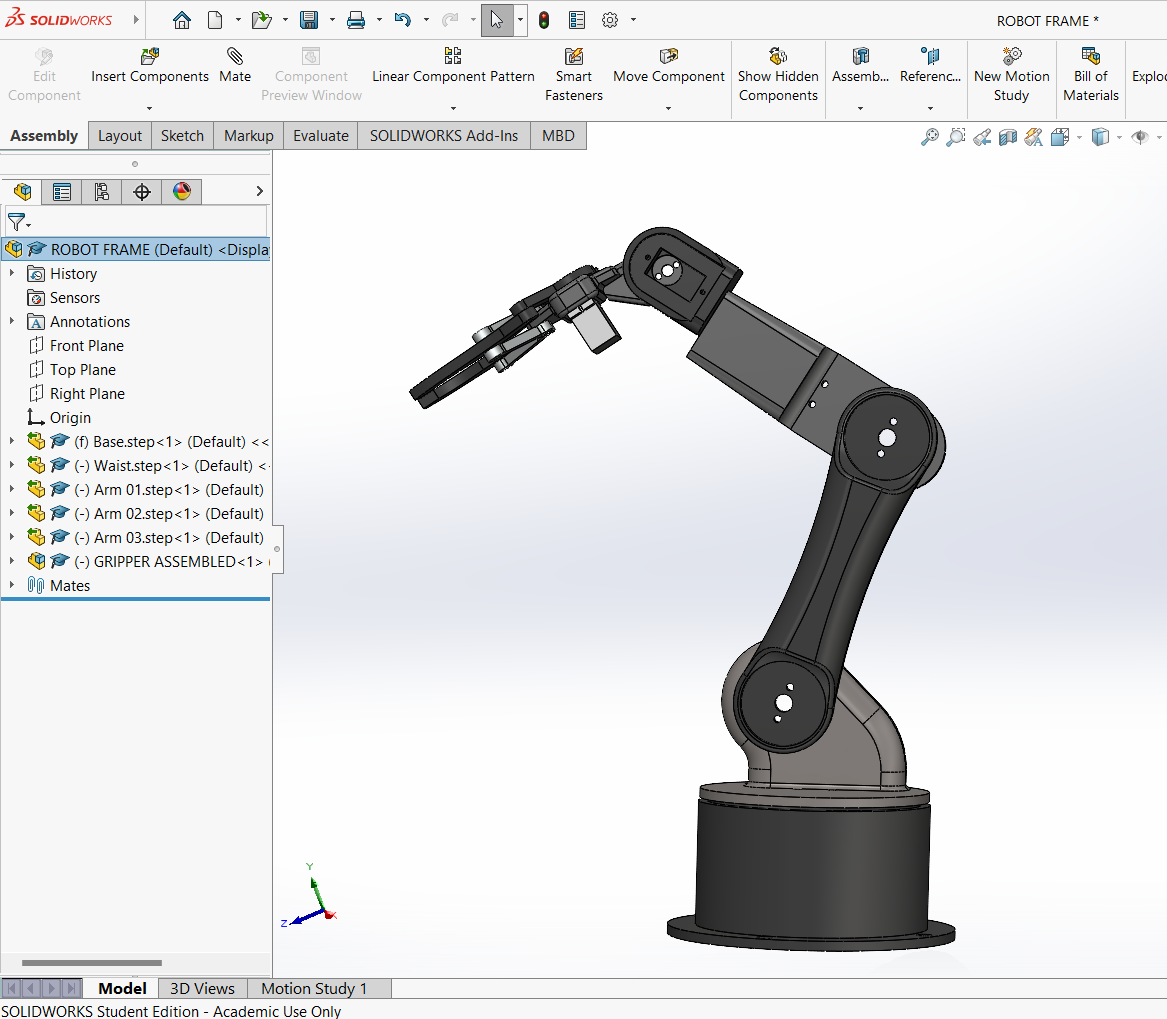

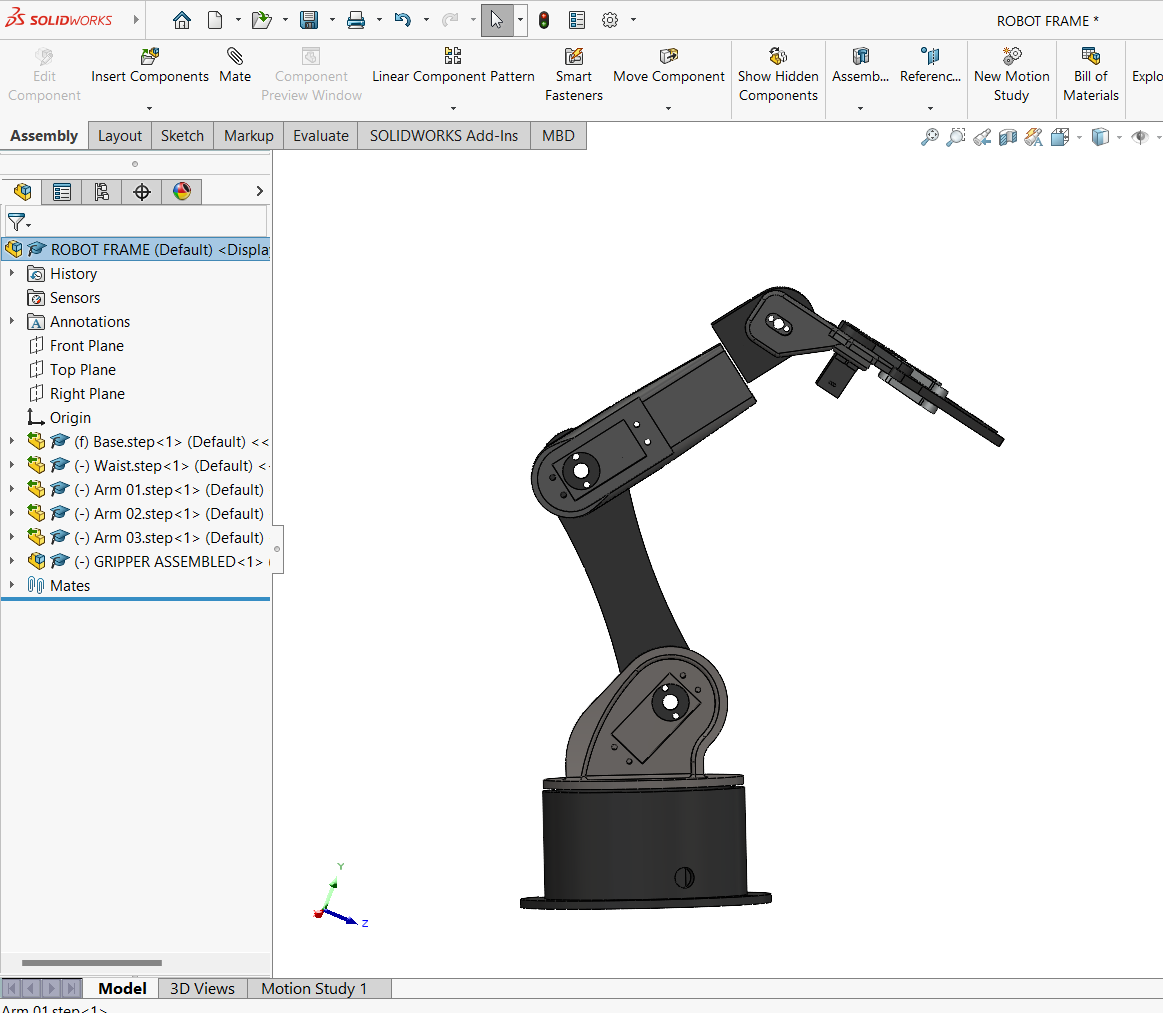

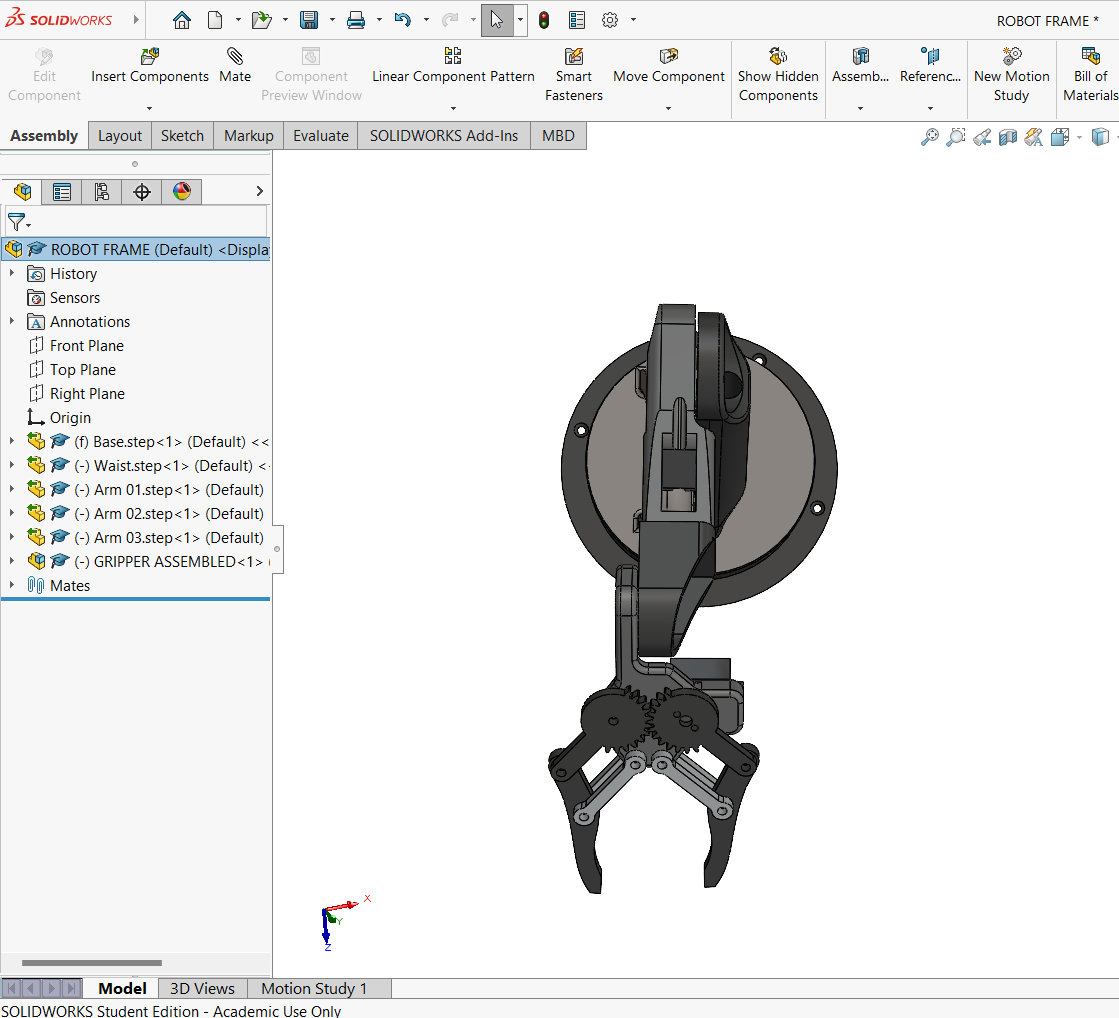

A 5-Degree of Freedom Robotic Arm project to perform repeated tasks accurately and precisely in controlled environments, such as pick-and-place tasks, assembly line operations, and educational purposes. The arm is modelled using CAD software & 3D Printing technique is used for fabrication. The project emphasizes modularity, scalability, and ease of maintenance for future upgrades. The Fabricated Arm is capable of lifting weights up to 300g (present design, can be scaled).

$12/download

<100
<100

The files are shared to help you get inspired and speed up your workflow. They may not be fully accurate or production-ready, so review carefully before use.

View NameExtensionAction
Design fileFormat: IGES
Front Viewwebp
Top Viewwebp
Bottom Viewwebp
Left Side Viewwebp
Right Side Viewwebp
Isometric Viewwebp
Supporting Files (0)
File NameAction
No supporting files

CAD File Details

File Information
File Nameinput_file.iges
File TypeIGES
Unitsmm
Geometry Summary
Faces3,674
Edges9,280
Vertices5,770
Solids32
Surface Types
Other3,674
Bounding Box
Width177.89 mm
Height304.13 mm
Depth233.47 mm
Volume
Total Volume419289.10 mm³
Usage Notes
NotesSuitable for design reference, visualization, prototyping workflows and engineering review. Validate dimensions and geometry before manufacturing use.

What you can use this CAD model for

  • Engineering review
  • Manufacturing discussion
  • Supplier communication
  • Prototype development
  • Design validation

Before using this CAD file

Review the model dimensions, units and geometry before using it for manufacturing or production. Some files may be created for reference, visualization or workflow acceleration and may require validation before final use.
