Autonomous Payload Delivery Drone - 3D Print and Assemble

IA
Intesaab Alam4 projects
0.0(0 reviews)
Aerospace
Drone
Autonomous_Drone
Payload_Delivery
3D_Printing
Aerodynamics
3D_Design
Autonomus_Operations
Logo
sprite x=0 y=0
Angle x=0 y=0
Angle x=0 y=60
Angle x=0 y=120
Angle x=30 y=0
Angle x=330 y=0

About this design

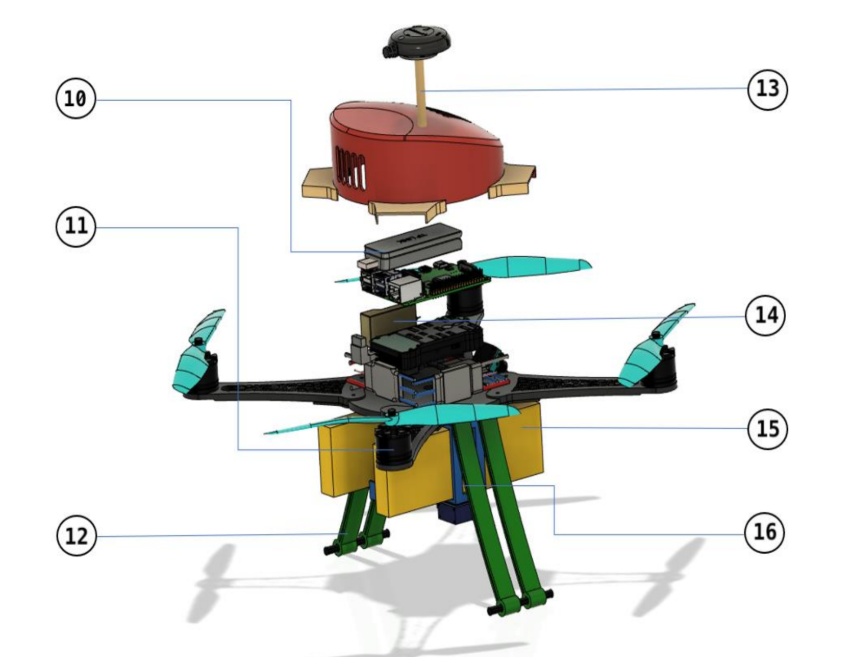

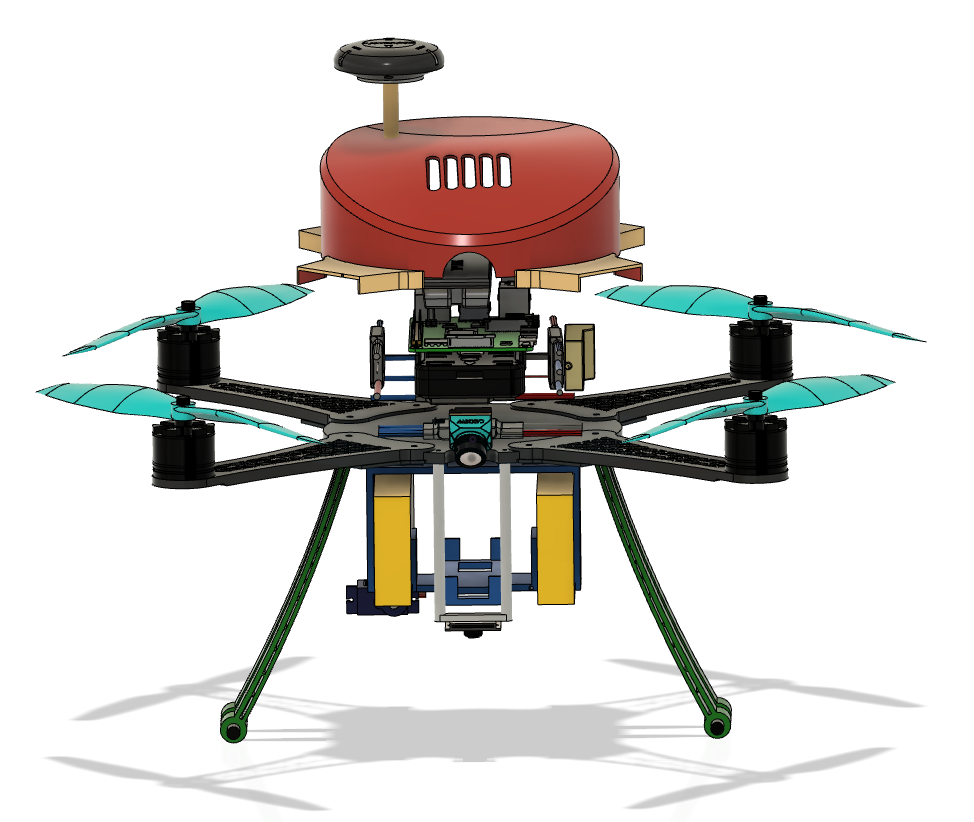

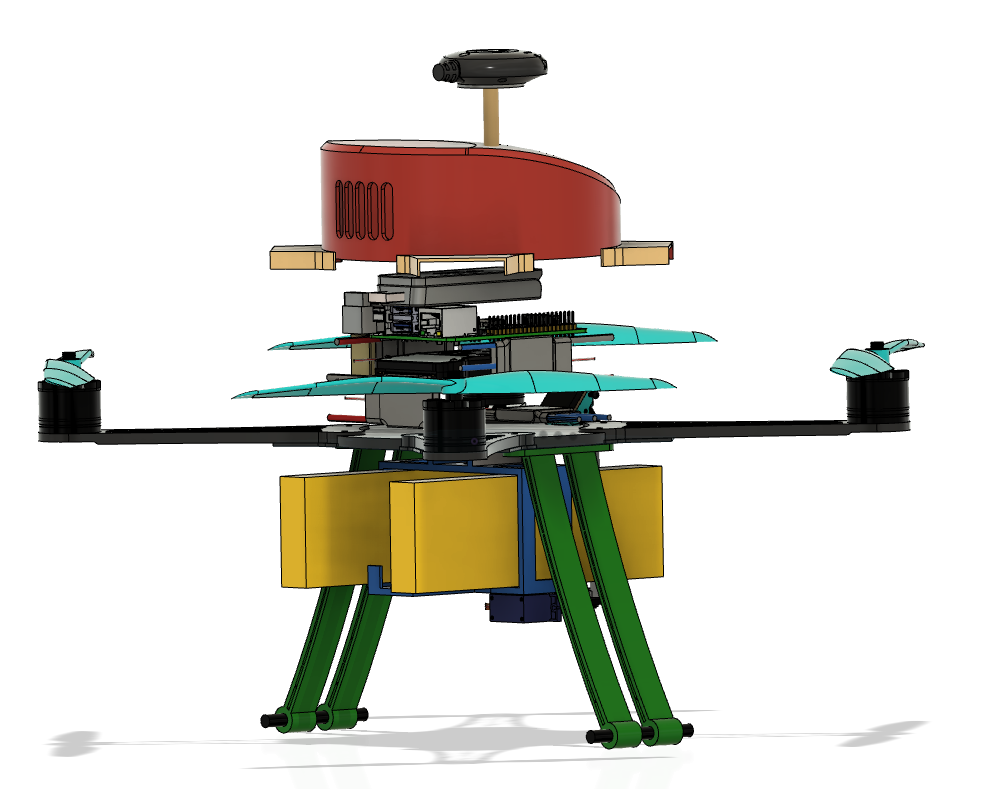

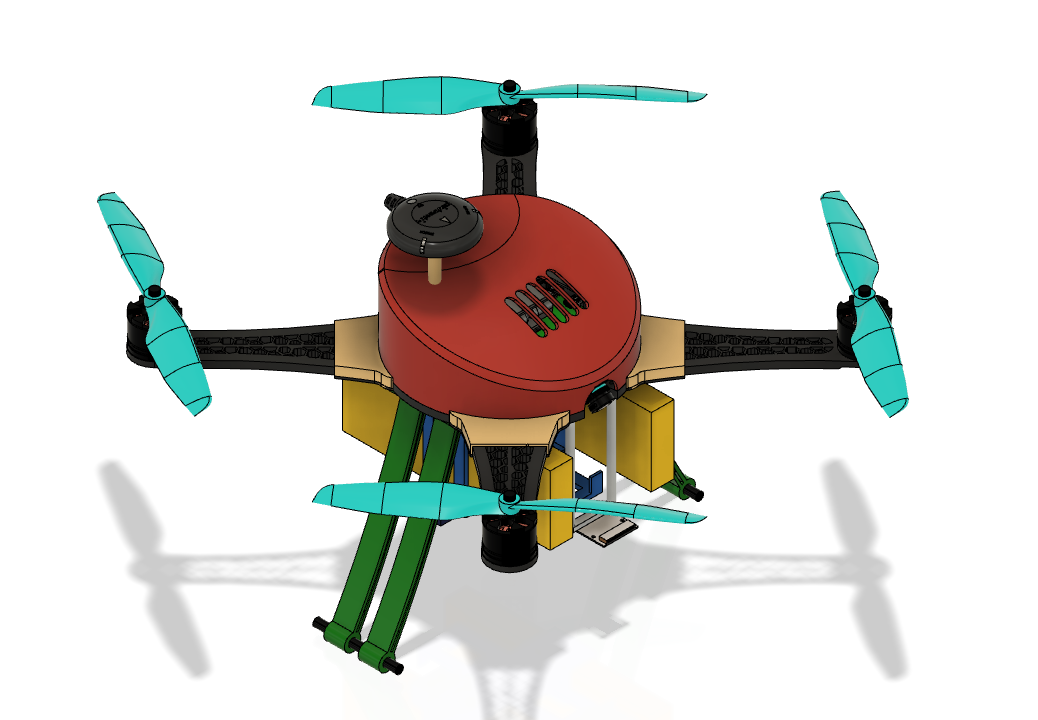

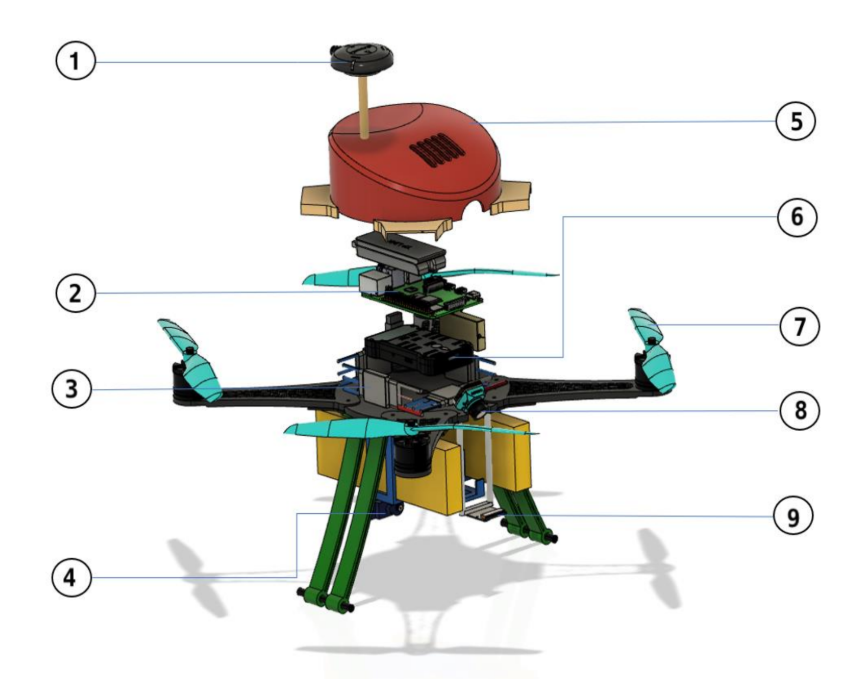

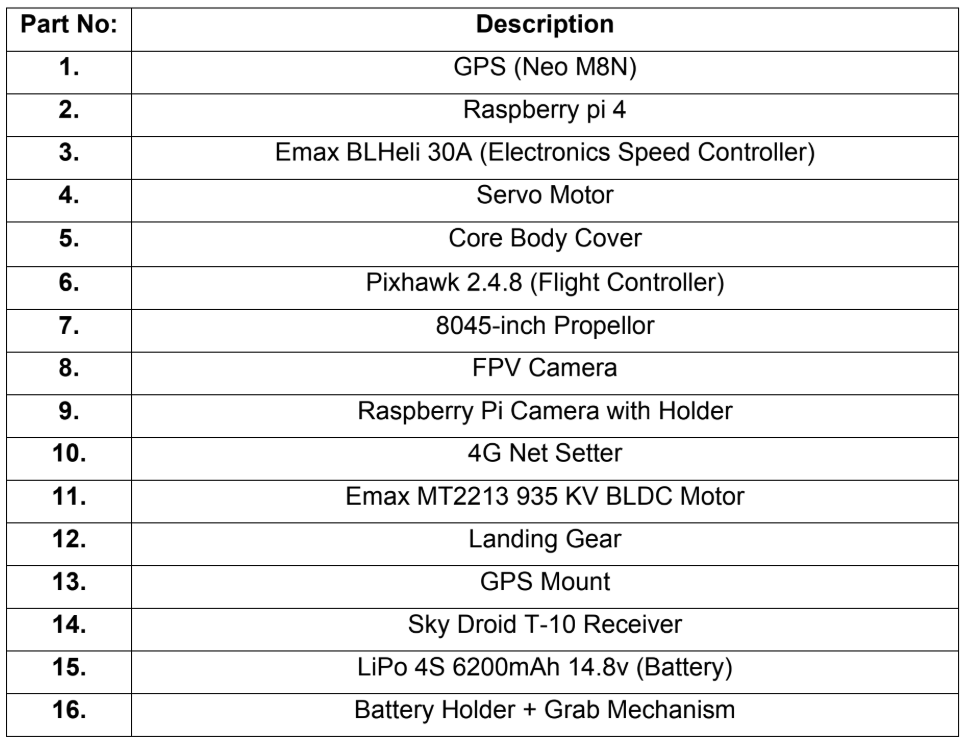

A drone that weighs 1.83 kg (including a 200-gram payload) and has an endurance of 18 minutes. This drone can deliver its payload to specific locations independently and accurately. drone's design is inspired by the inherent stability of beetles and features a landing leg system that enhances its stability, drawing from the leaf spring suspension commonly found in trucks. The payload carrier is ingeniously integrated within the battery holder, allowing seamless operation through a servo motor.

$15/download

<100
<100

The files are shared to help you get inspired and speed up your workflow. They may not be fully accurate or production-ready, so review carefully before use.

View NameExtensionAction
Design filestep
Front Viewwebp
Top Viewwebp
Bottom Viewwebp
Left Side Viewwebp
Right Side Viewwebp
Isometric Viewwebp
Supporting Files (0)
File NameAction
No supporting files

About CAD

The CAD model comprises 24262 faces, 75917 edges, 55649 vertices, forming 197 solids components. Surface classifications: 17223 planar, 4157 cylindrical, 132 conical, 77 spherical, 387 toroidal, 2286 other surfaces. Orientation details are unavailable. Dimensions: 426.48 mm wide, 400.81 mm high, 227.89 mm deep. Volume characteristics: total volume of 733448.48 mm³.
