Cam Housing | 7-Cylinder Radial Engine (STEP File + 2D Technical Drawing)

VIPUL GOEL1 projects
0.0(0 reviews)
Aerospace
Solidworks
CAD
Design
Plane
Airplane
Aerodynamics
3D modeling
Logo
sprite x=0 y=0
Angle x=0 y=0
Angle x=0 y=60
Angle x=0 y=120
Angle x=30 y=0
Angle x=330 y=0

About this design

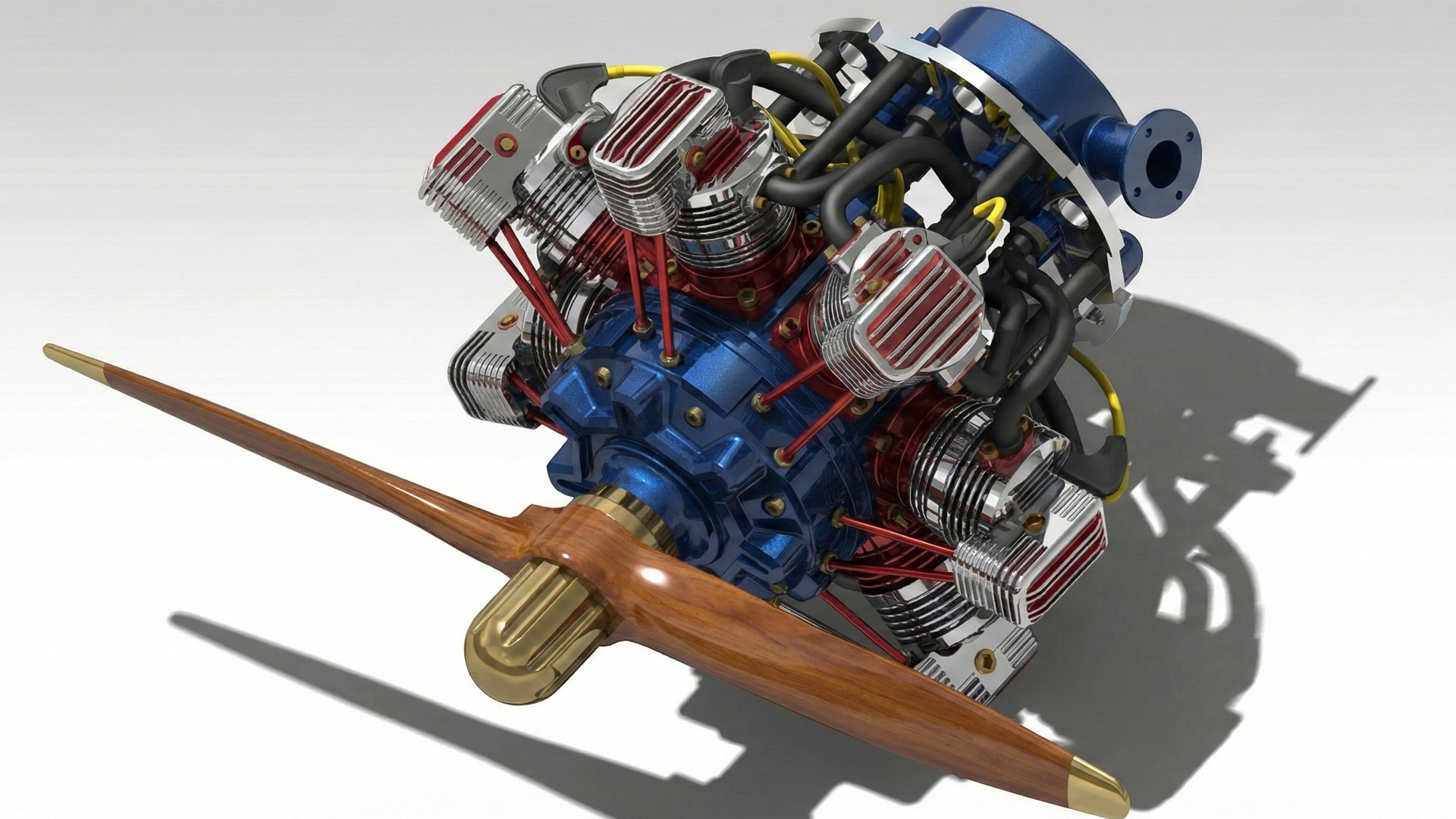

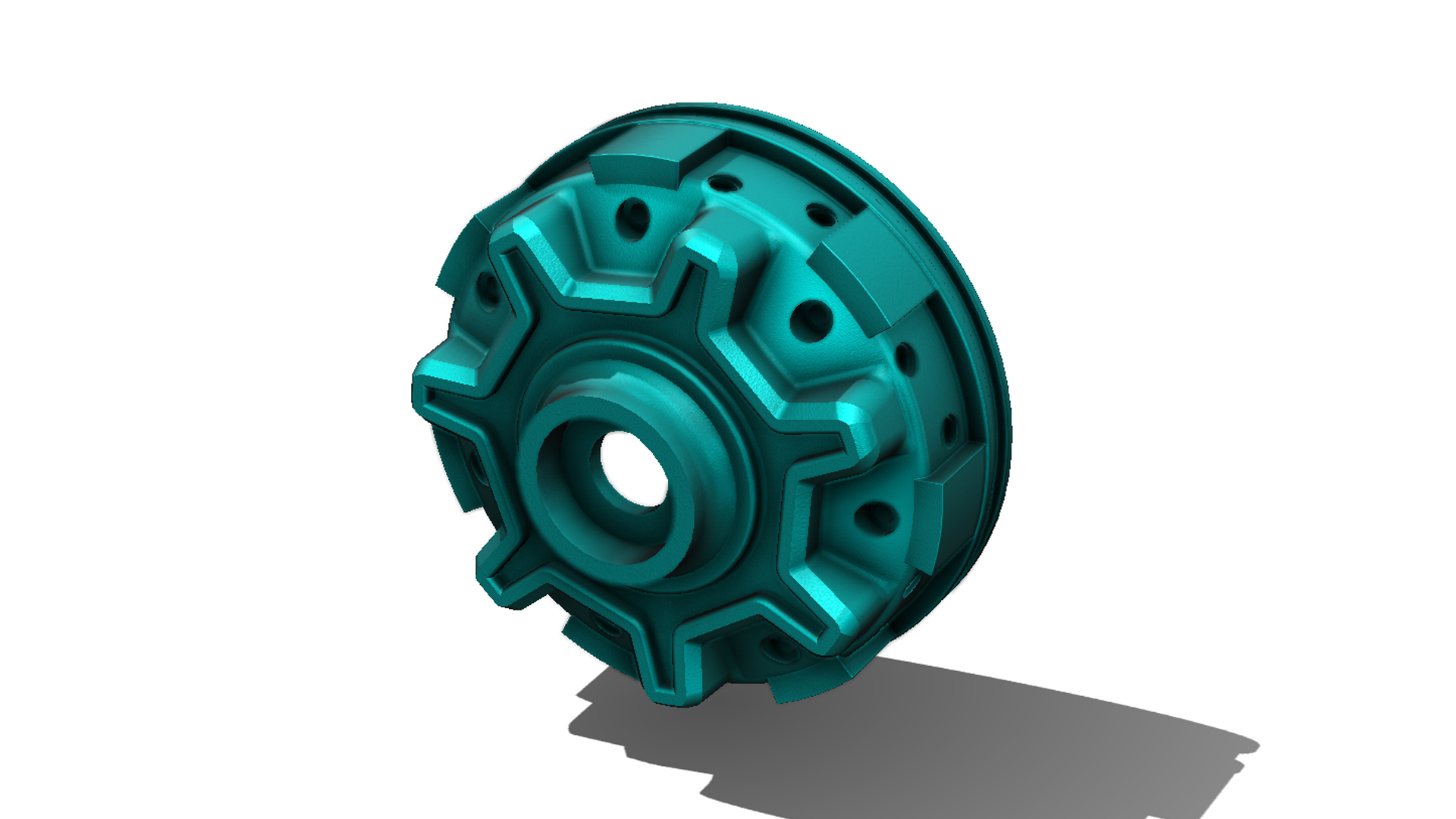

High-Fidelity Cam Housing for 7-Cylinder Radial Engine Design This download contains the precise 3D CAD model and technical documentation for the Cam Housing, a critical component of a complex 7-Cylinder Radial Engine assembly. Designed with manufacturing intent, this model is perfect for mechanical engineering students, CAD enthusiasts, and designers looking for high-quality engine components for assembly practice, rendering, or simulation.

$15/download

<100
<100

The files are shared to help you get inspired and speed up your workflow. They may not be fully accurate or production-ready, so review carefully before use.

View NameExtensionAction
Design fileSTEP
Front Viewwebp
Top Viewwebp
Bottom Viewwebp
Left Side Viewwebp
Right Side Viewwebp
Isometric Viewwebp
Supporting Files (0)
File NameAction
No supporting files

About CAD

The CAD model comprises 693 faces, 1766 edges, 1081 vertices, forming 1 solids components. Surface classifications: 123 planar, 254 cylindrical, 17 conical, 17 spherical, 93 toroidal, 189 other surfaces. Orientation details are unavailable. Dimensions: 108.00 mm wide, 107.82 mm high, 50.00 mm deep. Volume characteristics: total volume of 112057.27 mm³.

File Information
File Nameinput_file.step
File TypeSTEP
Unitsmm
Geometry
Faces693
Edges1,766
Vertices1,081
Solids1
Surfaces
Planar123
Cylindrical254
Conical17
Spherical17
Toroidal93
Other189
Bounding Box
Width108.00 mm
Height107.82 mm
Depth50.00 mm
Volumes
Total Volume112057.27 mm³
