About this design

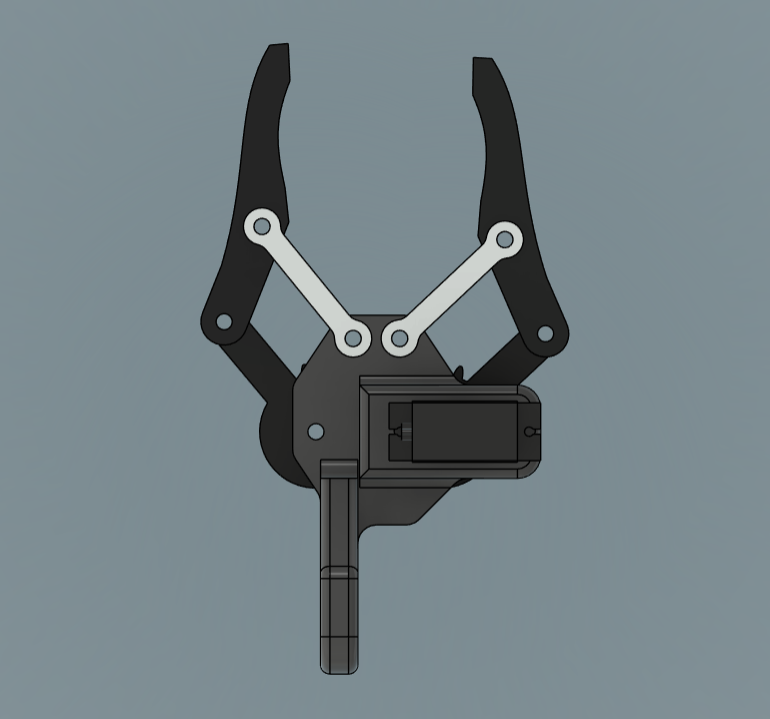

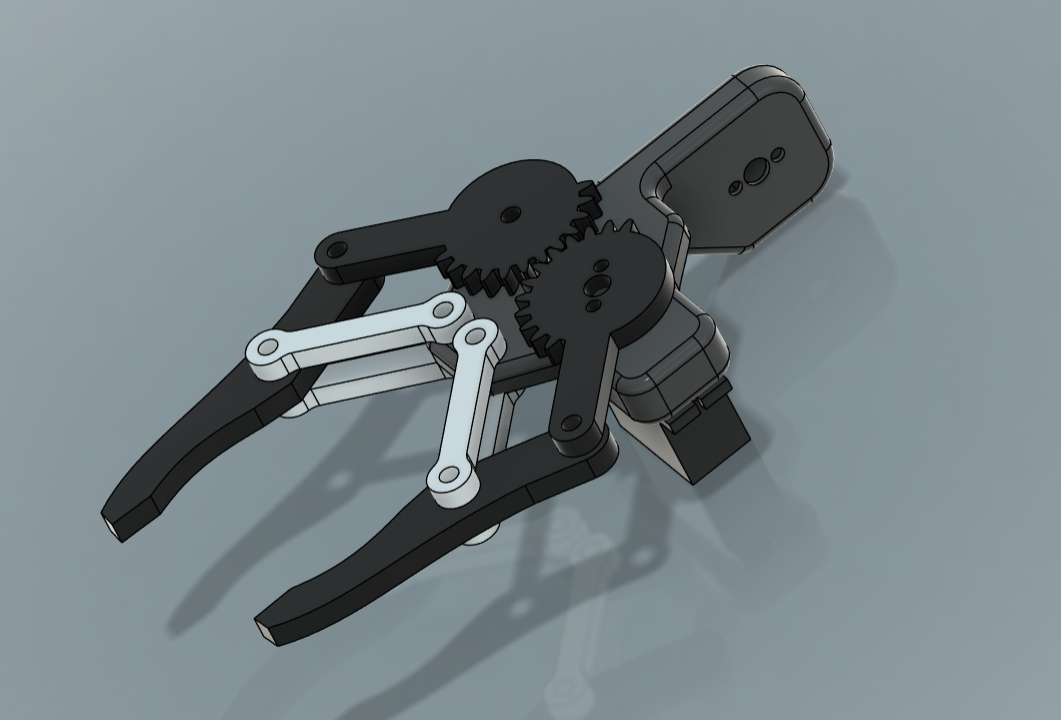

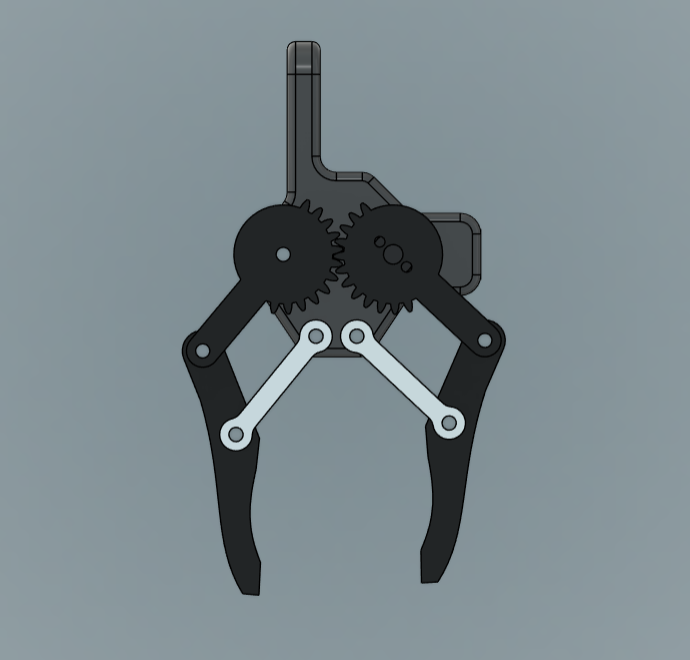

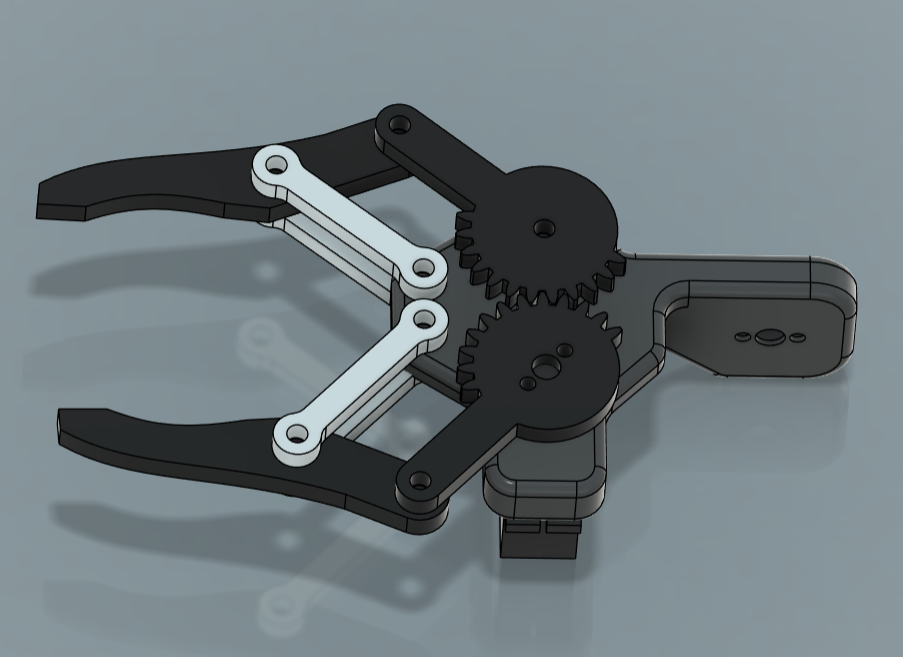

A 3D printable model of a Gripper or an End- Effector to be used on Robotic Arms for picking and placing operations. The gripper is 3D printable and require a SG90 or MG90s Servo motor to Operate.

$2.5/download

<100
<100

The files are shared to help you get inspired and speed up your workflow. They may not be fully accurate or production-ready, so review carefully before use.

View NameExtensionAction
Design fileiges
Front Viewwebp
Top Viewwebp
Bottom Viewwebp
Left Side Viewwebp
Right Side Viewwebp
Isometric Viewwebp
Supporting Files (0)
File NameAction
No supporting files

About CAD

The CAD model comprises 325 faces, 842 edges, 547 vertices, forming 13 solids components. Surface classifications: 325 other surfaces. Orientation details are unavailable. Dimensions: 79.05 mm wide, 33.00 mm high, 135.30 mm deep. Volume characteristics: total volume of 36768.54 mm³.

File Information
File Nameinput_file.iges
File TypeIGES
Unitsmm
Geometry
Faces325
Edges842
Vertices547
Solids13
Surfaces
Other325
Bounding Box
Width79.05 mm
Height33.00 mm
Depth135.30 mm
Volumes
Total Volume36768.54 mm³
