About this design

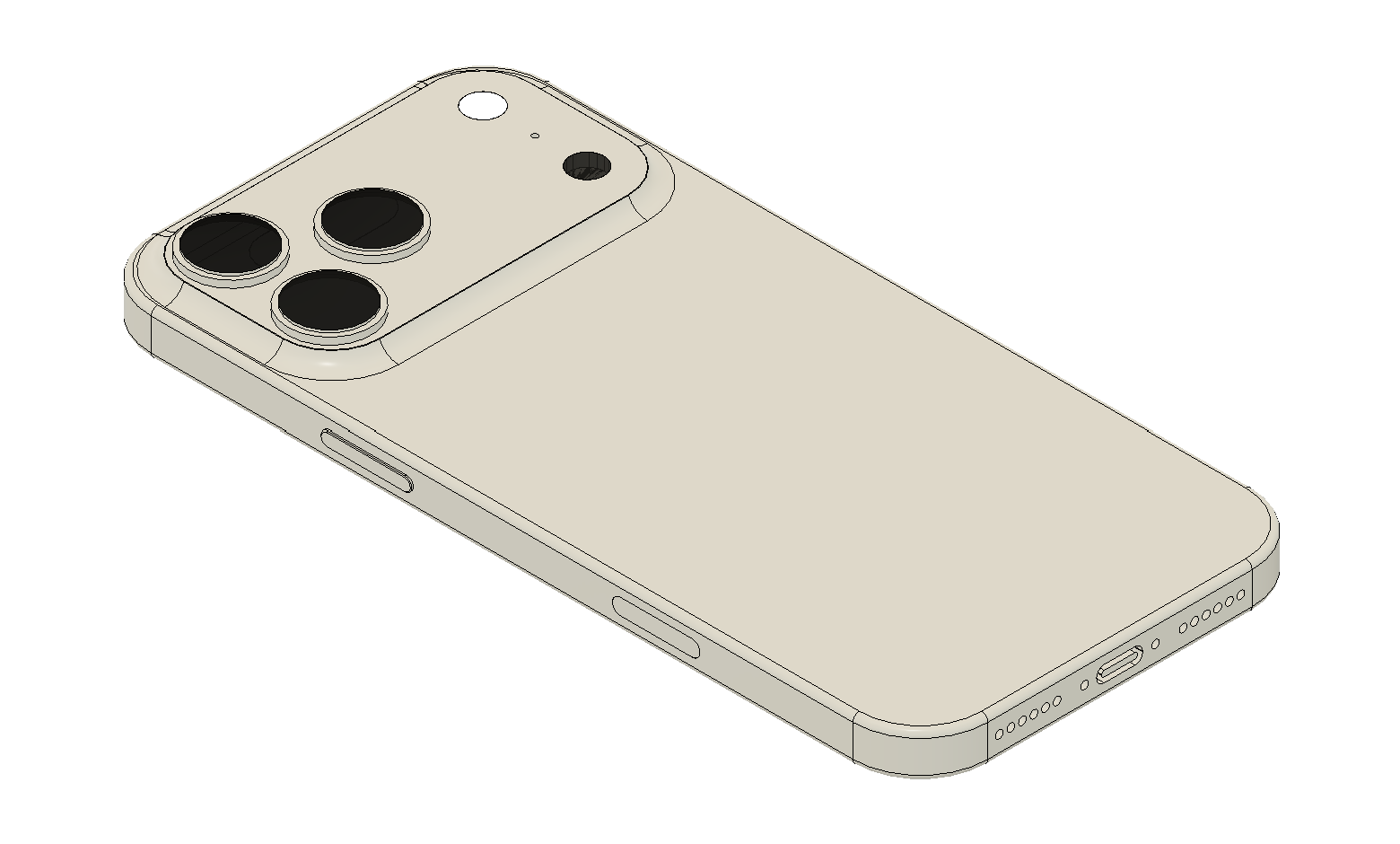

Designed from scratch for iPhone 17 Pro Max using available dimensions. Some deviations from the original design may exist due to the extrapolation of missing dimensional details.

$10/download

<100
<100

The files are shared to help you get inspired and speed up your workflow. They may not be fully accurate or production-ready, so review carefully before use.

View NameExtensionAction
Design filestep
Front Viewwebp
Top Viewwebp
Bottom Viewwebp
Left Side Viewwebp
Right Side Viewwebp
Isometric Viewwebp
Supporting Files (0)
File NameAction
No supporting files

About CAD

The CAD model comprises 351 faces, 729 edges, 454 vertices, forming 6 solids components. Surface classifications: 150 planar, 137 cylindrical, 16 conical, 32 toroidal, 16 other surfaces. Orientation details are unavailable. Dimensions: 78.88 mm wide, 163.43 mm high, 13.18 mm deep. Volume characteristics: total volume of 234712.15 mm³.

File Information
File Nameinput_file.step
File TypeSTEP
Unitsmm
Geometry
Faces351
Edges729
Vertices454
Solids6
Surfaces
Planar150
Cylindrical137
Conical16
Toroidal32
Other16
Bounding Box
Width78.88 mm
Height163.43 mm
Depth13.18 mm
Volumes
Total Volume234712.15 mm³
